Bộ lọc Ulpa - Hepa - Semi Hepa (Kiểu Mini Pleat)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (thay thế được ruột lọc)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (không thay thế được ruột lọc)
- Lọc Ulpa/Hepa/Semi-Hepa tiêu chuẩn ( Kiểu Mini Pleat)
- Lọc Ulpa/Hepa/Semi-Hepa lưu lượng cao ( Kiểu Mini Pleat)

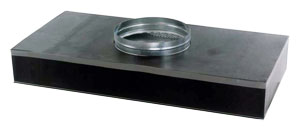

Disposable Standard Capacity Filter Unit

ULPA
HEPA
Semi-HEPA

D.O.P. P.S.L. Testing 99.9995%
99.99995%		 at 0.1µm
0.2µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)

Qualified With

  • Std. EN 1822 Class U15 / U16 / U17
  • Std. ENS RP-CC-001.3 TYPE F

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
U5DHC20610220 1220×610×150 mm (Ceiling Panel) 20.7 CMM (731 CFM)

17 mmH2O
（167 Pa）

*face
velocity:
0.5 m/s

34 mmH2O
（335 Pa）

*recommend

U5DHC10600220 1210×600×150 mm (Light Duty T-Bar) 20.2 CMM (713 CFM)
U5DHB70570220 1170×570×150 mm (Heavy Duty T-Bar) 18.5 CMM (653 CFM)
U5DH610610220 610×610×150 mm (Ceiling Panel) 10.1 CMM (357 CFM)
U5DH600600220 600×600×150 mm (Light Duty T-Bar) 9.7 CMM (343 CFM)
U5DH570570220 570×570×150 mm (Heavy Duty T-Bar) 8.7 CMM (307 CFM)

* Standard diameter of inlet duct are 14"Φ(350mm),12"Φ(300mm) and 10"Φ(250mm)
* Special dimension can be customized

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 99.99%
99.97%		 at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)

Qualified With

  • Std. EN 1822 Class H11 / H12 / H13 / H14
  • Std. ENS RP-CC-001.3 TYPE A / B / C / D

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
H4DHC20610220 1220×610×150 mm (Ceiling Panel) 35.2 CMM (1243 CFM)

25.4 mmH2O
（249 Pa）

*face
velocity:
0.85 m/s

50.8 mmH2O
（500 Pa）

*recommend

H4DHC10600220 1210×600×150 mm (Light Duty T-Bar) 34.3 CMM (1211 CFM)
H4DHB70570220 1170×570×150 mm (Heavy Duty T-Bar) 31.4 CMM (1109 CFM)
H4DH610610220 610×610×150 mm (Ceiling Panel) 17.2 CMM (607 CFM)
H4DH600600220 600×600×150 mm (Light Duty T-Bar) 16.6 CMM (586 CFM)
H4DH570570220 570×570×150 mm (Heavy Duty T-Bar) 14.9 CMM (526 CFM)

* Standard diameter of inlet duct are 14"Φ(350mm),12"Φ(300mm) and 10"Φ(250mm)
* Special dimension can be customized

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 95% at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)

Qualified With

  • Std. EN 1822 Class H10

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
S1DHC20610220 1220×610×150 mm (Ceiling Panel) 35.2 CMM (1243 CFM)

12.5 mmH2O
（122 Pa）

*face
velocity:
0.85 m/s

25 mmH2O
（250 Pa）

*recommend

S1DHC10600220 1210×600×150 mm (Light Duty T-Bar) 34.3 CMM (1211 CFM)
S1DHB70570220 1170×570×150 mm (Heavy Duty T-Bar) 31.4 CMM (1109 CFM)
S1DH610610220 610×610×150 mm (Ceiling Panel) 17.2 CMM (607 CFM)
S1DH600600220 600×600×150 mm (Light Duty T-Bar) 16.6 CMM (586 CFM)
S1DH570570220 570×570×150 mm (Heavy Duty T-Bar) 14.9 CMM (526 CFM)

* Standard diameter of inlet duct are 14"Φ(350mm),12"Φ(300mm) and 10"Φ(250mm)
* Special dimension can be customized

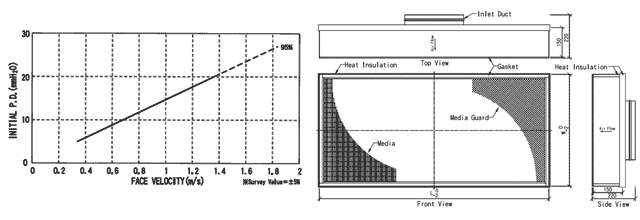

Performance Chart & Filter Three-View
