Partition System

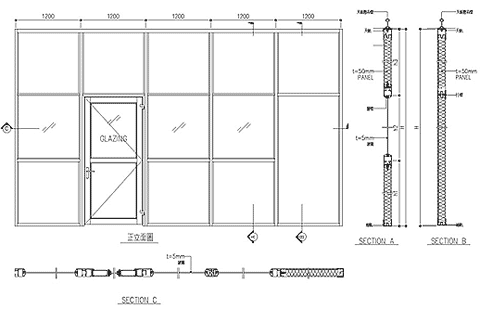

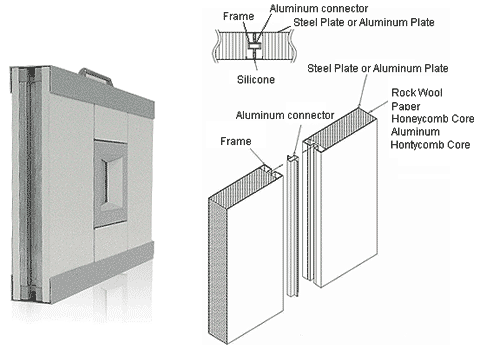

Double Concave C/R Patition Panel System-Double Cincave Fixing Type





Specification

Partition Type Paper honey comb Aluminum honey comb Fireproof rock wool
Thickness 50mm 50mm 50mm/100mm
Maximum Length 6000mm 6000mm 6000mm
Standard Length 3000mm 3000mm 3000mm
Standard Width 900mm/1200mm 900mm/1200mm 900mm/1200mm
Weight 10 kg/m 11 kg/m 38 kg/m
Material Finishing 0.5mmt Epoxy steel plate 0.5mmt Epoxy steel plate 0.5mmt Epoxy steel plate
0.5mmtAntistatic steel plate 0.5mmtAntistatic steel plate 0.5mmtAntistatic steel plate
0.5mmt Stainless steel plate 0.5mmt Stainless steel plate 0.5mmt Stainless steel plate
EPOXY Coating PE Thermosetting Epoxy 20~25μm PE Thermosetting Epoxy 20~25μm PE Thermosetting Epoxy 20~25μm
Priming EPOXY10~12μm EPOXY10~12μm EPOXY10~12μm
Filling Material Noncombustible paper comb Noncombustible aluminum comb Fireproof rock wool
Joint Protruding Frame Protruding Frame Protruding Frame
Calking Silica Gel Silica Gel Silica Gel
Sound Insulation 30dB 30dB 30dB
Interior Function Pipe covered up before hand Pipe covered up before hand Pipe covered up before hand
Inspection Standard GB9978 0..37hr GB9978 0..33hr GB9978 1hr/4hr
