Thiết bị lọc dùng cho cá nhân (Tủ lọc - ghế lọc)
- Personal Safety Air Clean Appliance
- Air Care Filter Chair

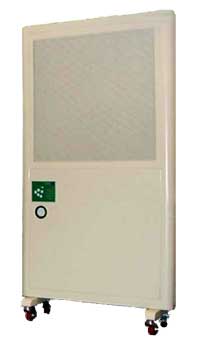

Personal Safety Air Clean Appliance

Applications

  1. Examination Room/ Medical Office
  2. Sick Patient Care Areas
  3. Pharmacy/ Dispensary Area
  4. Operating Room/Emergency Room
  5. Semi-Conductor Assembly Area
  6. Laboratory/Chemical Produce Clean Room
  7. Home or Office Areas

Functions

  1. To Prevent the spread of air-born bacterial and viral particles
  2. Efficiently controls close-contact transfer of contagious disease
  3. Reverse cycle air flow design ensures a constant fresh stream of intake air
  4. Streamlined design allows easy access to small spaces while its large intake area maximizes the clean air flow cycle
  5. Adjustable air-flow capability for ever-changing demands
  6. Additional Pre-filter option available (extends usage-life for the main hepa filter) or if necessary use activated carbon filter
  7. Control panel designed with soft touch buttons and simple display for operation ease.
  8. UV lamp equipped to ensure safety of maintenance personnel when changing expired hepa filter

Specifications

Item YHCU-901 Blower Unit
Filtration Efficiency HEPA Filter 99.99% Efficient at 0.3μm Micron Size Particles
Pre-Filter Non-Woven air filter or option activated carton filter
Capacity Standard 5 CMM. High 7 CMM
Face Velocity 0.15~0.35m/s
Noise Level 55±5DB (at 1.5m)
Material Baked Epoxy Steel
Size 900x150x1730 (mm)±50
Power Consumption AC 110V 60Hz PHASE 158W
