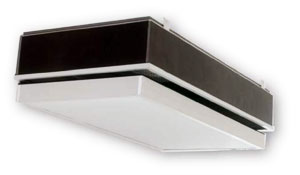

Room Side Replaceable Filter Unit

Normal
HEPA
ULPA




This type of filter is mainly used in Class 1,000 to 100,000 C/R which can replaces the traditional HEPA BOX type filter. It’s easy to replace and more economical than Box Type, which makes it a desirable choice for construction engineers.

Filter Unit Compare Table

  Construction Cost Maintenance Cost Convenient of Replacement Practictability
Room Side Replaceable Filter Unit O ◎ ◎ ◎
Disposable Filter Unit ◎ X X △
Conservative Filter Unit X △ △ △

Economical and Cost-Efficiency:
Easy replaceable filter unit can reduce the cost and it is more efficient.

Easy and Convenient to Replace:
Clip-on filter fixture. Filter can be replaced from roomside. Quick installation and convenient to replacement.

Widely Multi-Functional Design:
Fit for all kinds of ceiling grid, heavy duty T-bar, light duty T-bar,and ceiling panel.

Sturdy and Lightweight Housing:
Made by anodized aluminum, light in weight Easy to handle and install.

Friendly and custom-built:
There are various of inlet ducts and stainless outlet panel to choose, which satisfied all needs.

Professional and Quality Filter:
Collect specifically with "KOWA" replaceable air filter. Quality is guaranteed.

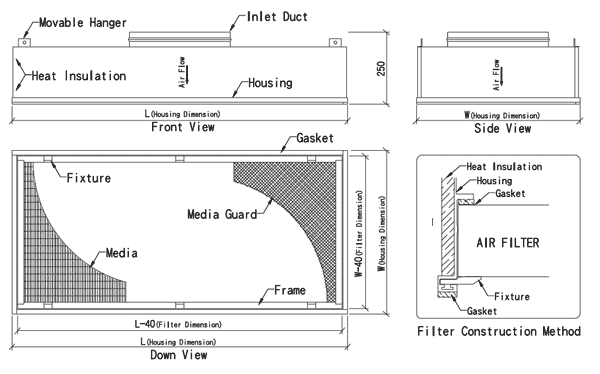

Filter Three-View

D.O.P. P.S.L. Testing 99.99%
99.97%		 at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)

Qualified With

  • Std. EN 1822 Class H11 / H12 / H13 / H14
  • Std. ENS RP-CC-001.3 TYPE A / B / C / D


With Standard Capacity ULPA Filter:

Filter Unit Model Dimension Filter Model Dimension Capacity Initial P.D.
(*without inlet duct)
Length * Width * Depth		 (*without gasket)
Length * Width * Depth
FB-C10600250 1210×600×180 mm H4MHB70560070 1170×560×70 mm 34.3 CMM 25.4 mmH2O
（249 Pa）
FB-B70570250 1170×570×180 mm H4MHB30530070 1130×530×70 mm 31.2 CMM
FB-905600250 905×600×180 mm H4MH865560070 865×560×70 mm 25.1 CMM
FB-870570250 870×570×180 mm H4MH830530070 830×530×70 mm 22.7 CMM
FB-600600250 600×600×180 mm H4MH560560070 560×560×70 mm 15.9 CMM
FB-570570250 570×570×180 mm H4MH530530070 530×530×70 mm 14.2 CMM

With High Capacity ULPA Filter:

Filter Unit Model Dimension Filter Model Dimension Capacity Initial P.D.
(*without inlet duct)
Length * Width * Depth		 (*without gasket)
Length * Width * Depth
FB-C10600250 1210×600×180 mm H4MHB70560070 1170×560×70 mm 50.4 CMM 25.4 mmH2O
（249 Pa）
FB-B70570250 1170×570×180 mm H4MHB30530070 1130×530×70 mm 45.9 CMM
FB-905600250 905×600×180 mm H4MH865560070 865×560×70 mm 36.9 CMM
FB-870570250 870×570×180 mm H4MH830530070 830×530×70 mm 33.4 CMM
FB-600600250 600×600×180 mm H4MH560560070 560×560×70 mm 23.4 CMM
FB-570570250 570×570×180 mm H4MH530530070 530×530×70 mm 20.9 CMM

*Standard diameter of inlet duct are 14"Φ(350mm),12"Φ(300mm) and 10"Φ(250mm)

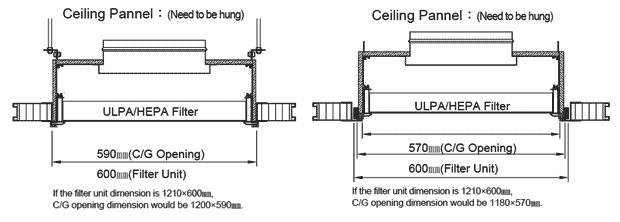

Structural Drawing

D.O.P. P.S.L. Testing 99.9995%
99.99995%		 at 0.1µm
0.2µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)

Qualified With

  • Std. EN 1822 Class U15 / U16 / U17
  • Std. ENS RP-CC-001.3 TYPE F

With Standard Capacity ULPA Filter:

Filter Unit Model Dimension Filter Model Dimension Capacity Initial P.D.
(*without inlet duct)
Length * Width * Depth		 (*without gasket)
Length * Width * Depth
FB-C10600250 1210×600×180 mm U5MHB70560070 1170×560×70 mm 20.2 CMM 17 mmH2O
（167 Pa）
FB-B70570250 1170×570×180 mm U5MHB30530070 1130×530×70 mm 18.3 CMM
FB-905600250 905×600×180 mm U5MH865560070 865×560×70 mm 14.8 CMM
FB-870570250 870×570×180 mm U5MH830530070 830×530×70 mm 13.3 CMM
FB-600600250 600×600×180 mm U5MH560560070 560×560×70 mm 9.4 CMM
FB-570570250 570×570×180 mm U5MH530530070 530×530×70 mm 8.3 CMM

With High Capacity ULPA Filter:

Filter Unit Model Dimension Filter Model Dimension Capacity Initial P.D.
(*without inlet duct)
Length * Width * Depth		 (*without gasket)
Length * Width * Depth
FB-C10600250 1210×600×180 mm U5MHB70560070 1170×560×70 mm 34.3 CMM 25.4 mmH2O
（249 Pa）
FB-B70570250 1170×570×180 mm U5MHB30530070 1130×530×70 mm 31.2 CMM
FB-905600250 905×600×180 mm U5MH865560070 865×560×70 mm 25.1 CMM
FB-870570250 870×570×180 mm U5MH830530070 830×530×70 mm 22.7 CMM
FB-600600250 600×600×180 mm U5MH560560070 560×560×70 mm 15.9 CMM
FB-570570250 570×570×180 mm U5MH530530070 530×530×70 mm 14.2 CMM

*Standard diameter of inlet duct are 14"Φ(350mm),12"Φ(300mm) and 10"Φ(250mm)

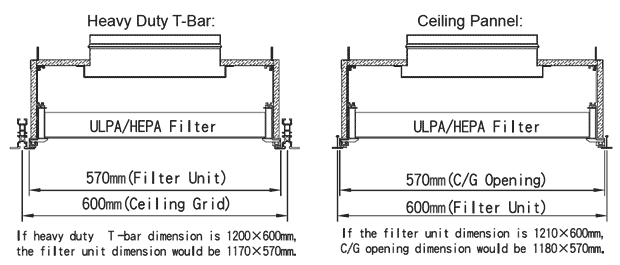

Structural Drawing
