Raised Floor

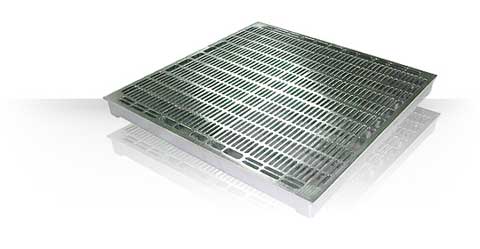

Grating
NiCr Grating

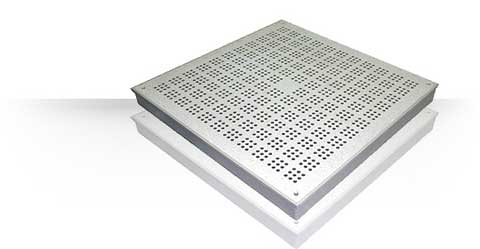

Perforated

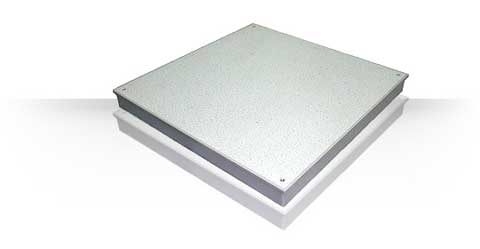

Solid

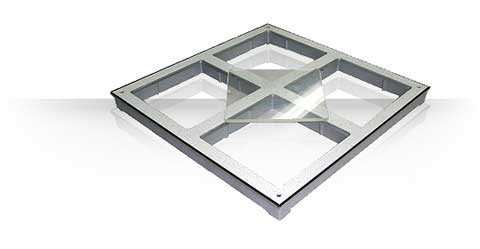

Window Pannel


Seismic Resistant Test & Dynamic Loading Test

S/N Item V60AG500E V60AG700E V60AG1000E
1-1 Material of Floor Tile V60AG1000E
1-2 ESD of Floor Surface ≦ 0.1Ω
2-1 Material of Panel Die-cast Aluminum
2-2 Uniform Load 1,000kgf/m2
Deflection ≦1.0mm 		1,500kgf/m2
Deflection ≦1.0mm		 2,000kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load 500kgf/6.45cm2
Deflection ≦2.0mm 		750kgf/6.45cm2
Deflection ≦2.0mm 		1,000kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength 1,000kgf/6.45cm2 1,500kgf/6.45cm2 2,000kgf/6.45cm2
2-5 Tolerance of Dimension 600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness ± 0.10mm
2-7 Tolerance of Flatness ± 0.20mm
2-8 Tolerance of Diagonal Max. 0.50mm
3-1 Opening Rate 50%
3-2 Treatment Option Epoxy

Seismic Resistant Test & Dynamic Loading Test

S/N Item NiCrV60AG500 NiCrV60AG700 NiCrV60AG1000
1-1 Material of Floor Tile N/A
1-2 ESD of Floor Surface ≦ 0.1Ω
2-1 Material of Panel Die-cast Aluminum
2-2 Uniform Load 1,000kgf/m2
Deflection ≦1.0mm 		1,500kgf/m2
Deflection ≦1.0mm		 2,000kgf/m2
Deflection ≦1.0mm
2-3 Concentrated Load 500kgf/6.45cm2
Deflection ≦2.0mm 		750kgf/6.45cm2
Deflection ≦2.0mm 		1,000kgf/6.45cm2
Deflection ≦2.0mm
2-4 Ultimate Strength 1,000kgf/6.45cm2 1,500kgf/6.45cm2 2,000kgf/6.45cm2
2-5 Tolerance of Dimension 2,000kgf/6.45cm2
2-6 Tolerance of Thickness ± 0.10mm
2-7 Tolerance of Flatness ± 0.20mm
2-8 Tolerance of Diagonal Max. 0.50mm
3-1 Opening Rate 50%
3-2 Treatment Option Ni-Cr

Seismic Resistant Test & Dynamic Loading Test

S/N Item V60AP300 V60AP500 V60AP700 V60AP1000 V60AP1200 V60AP1500 V60AP1700 V60AP2000 V60AP2500
1-1 Material of Floor Tile Conductive Vinyl tile Conductive Vinyl tile Conductive Vinyl tile
1-2 ESD of Floor Surface Conductivity: 104~106 Ω
 Anti-static: 5 x 106~5 x 108Ω		 Conductivity: 104~106 Ω
 Anti-static: 1 x 106~5 x 108Ω 		Conductivity: 104~106 Ω
Anti-static: 1 x 106~5 x 108Ω
2-1 Material of Panel Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
2-2 Uniform Load 500
kgf/m2

Deflection ≦1.0mm		 1,000
kgf/m2

Deflection ≦1.0mm		 1,250
kgf/m2

Deflection ≦1.0mm		 1,350
kgf/m2

Deflection ≦1.0mm		 1,450
kgf/m2

Deflection ≦1.0mm		 1,350
kgf/m2

Deflection
≦1.0mm		 1,450
kgf/m2

Deflection
≦1.0mm		 1,550
kgf/m2

Deflection ≦1.0mm		 2,000
kgf/m2

Deflection ≦1.0mm
2-3 Con-centrated Load 250kgf
/6.45cm2

Deflection ≦2.0mm		 455kgf
/6.45cm2

Deflection ≦2.0mm		 600kgf
/6.45cm2

Deflection ≦2.0mm		 800kgf
/6.45cm2

Deflection ≦2.0mm		 1,000kgf
/6.45cm2

Deflection ≦2.0mm		 1,200kgf
/6.45cm2

Deflection ≦2.0mm		 1,400kgf
/6.45cm2

Deflection ≦2.0mm		 1,700kgf
/6.45cm2

Deflection ≦2.0mm		 2,200kgf
/6.45cm2

Deflection ≦2.0mm
2-4 Ultimate Strength 500kgf
/6.45cm2		 900kgf
/6.45cm2		 1,200kgf
/6.45cm2		 1,600kgf
/6.45cm2 		2,000kgf
/6.45cm2 		2,400kgf
/6.45cm2 		2,800kgf
/6.45cm2 		3,400kgf
/6.45cm2 		4,400kgf
/6.45cm2
2-5 Tolerance of Dimension 600+0.00mm/600-0.20mm 600+0.00mm/600-0.20mm 600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness ± 0.10mm ± 0.10mm ± 0.10mm
2-7 Tolerance of Flatness ± 0.20mm ± 0.20mm ± 0.20mm
2-8 Tolerance of Diagonal Max. 0.50mm Max. 0.50mm Max. 0.50mm
3-1 Opening Rate 17% 17% 17%
3-2 Treatment Option Epoxy coating or Ni-Cr plating Epoxy coating or Ni-Cr plating Epoxy coating or Ni-Cr plating

Seismic Resistant Test & Dynamic Loading Test

S/N Item V60AS300 V60AS500 V60AS700 V60AS1000 V60AS1200 V60AS1500 V60AS1700 V60AS2000 V60AS2500
1-1 Material of Floor Tile Conductive Vinyl tile Conductive Vinyl tile Conductive Vinyl tile
1-2 ESD of Floor Surface Conductivity: 104~106 Ω
Anti-static: 5 x 106~5 x 108Ω		 Conductivity: 104~106 Ω
Anti-static: 1 x 106~5 x 108Ω		 Conductivity: 104~106 Ω
Anti-static: 5 x 106~5 x 108Ω
2-1 Material of Panel Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
2-2 Uniform Load 800
kgf/m2

Deflection
≦1.0mm 		1,250
kgf/m2

Deflection
≦1.0mm 		1,700
kgf/m2

Deflection
≦1.0mm		 2,000
kgf/m2

Deflection
≦1.0mm 		2,200
kgf/m2

Deflection
≦1.0mm		 2,400
kgf/m2

Deflection
≦1.0mm		 2,600
kgf/m2

Deflection
≦1.0mm 		2,800
kgf/m2

Deflection
≦1.0mm 		3,000
kgf/m2

Deflection
≦1.0mm
2-3 Con-centrated Load 300kgf
/6.45cm2

Deflection ≦2.0mm 		500kgf
/6.45cm2

Deflection ≦2.0mm 		700kgf
/6.45cm2

Deflection ≦2.0mm		 1000kgf
/6.45cm2

Deflection ≦2.0mm 		1200kgf
/6.45cm2

Deflection ≦2.0mm 		1500kgf
/6.45cm2

Deflection ≦2.0mm 		1700kgf
/6.45cm2

Deflection ≦2.0mm 		2000kgf
/6.45cm2

Deflection ≦2.0mm 		2500kgf
/6.45cm2

Deflection ≦2.0mm
2-4 Ultimate Strength 600kgf
/6.45cm2 		1,000kgf
/6.45cm2 		1,400kgf
/6.45cm2 		2,000kgf
/6.45cm2 		2,400kgf
/6.45cm2 		3,000kgf
/6.45cm2 		3,400kgf
/6.45cm2 		4,000kgf
/6.45cm2 		5,000kgf
/6.45cm2
2-5 Tolerance of Dimension 600+0.00mm/600-0.20mm 600+0.00mm/600-0.20mm 600+0.00mm/600-0.20mm
2-6 Tolerance of Thickness ± 0.10mm ± 0.10mm ± 0.10mm
2-7 Tolerance of Flatness ± 0.20mm ± 0.20mm ± 0.20mm
2-8 Tolerance of Diagonal Max. 0.50mm Max. 0.50mm Max. 0.50mm
3-1 Opening Rate Epoxy coating or Ni-Cr plating Epoxy coating or Ni-Cr plating Epoxy coating or Ni-Cr plating

Seismic Resistant Test & Dynamic Loading Test

S/N Item V60AWP
1-1 Material of Floor Tile Conductive tile or Epoxy coating or NiCr plating
1-2 ESD of Floor Surface Conductivity: 104~106 Ω  Anti-static: 1 x 106~5 x 108Ω
1-3 Material of Window Acrylic Plastic or Glass 246x246mm (4 pieces)
2-1 Material of Panel Die-cast Aluminum
2-2 Uniform Load 500kgf/m2.  Deflection ≦1.0mm
2-3 Concentrated Load 500kgf/6.45cm2.  Deflection ≦2.0mm
2-4 Ultimate Strength 600+0.00mm/600-0.20mm
2-5 Tolerance of Dimension ± 0.10mm
2-6 Tolerance of Thickness ± 0.20mm
2-7 Tolerance of Flatness Max. 0.50mm
