Bộ lọc Ulpa - Hepa - Semi Hepa (Kiểu Mini Pleat)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (thay thế được ruột lọc)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (không thay thế được ruột lọc)
- Lọc Ulpa/Hepa/Semi-Hepa tiêu chuẩn ( Kiểu Mini Pleat)
- Lọc Ulpa/Hepa/Semi-Hepa lưu lượng cao ( Kiểu Mini Pleat)

Mini Pleat High Capacity Filter

ULPA'
ULPA
HEPA
Semi-HEPA

D.O.P. P.S.L. Testing 99.9995% at 0.1µm
0.2µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Ultra thin mini pleat air filter (Knife-Edge=88mm)

Qualified With

  • Std. EN 1822 Class U15 / U16 / U17
  • Std. IES RP-CC-001.3 TYPE A / B / C / D

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
U5MH305610088 305×610×88 mm 8.1 CMM (286 CFM)

25.4 mmH2O
（249 Pa）

*face velocity:
0.85 m/s

50.8 mmH2O
（500 Pa）

*recommend

U5MH610610088 610×610×88 mm 17.2 CMM (607 CFM)
U5MH760610088 760×610×88 mm 21.6 CMM (763 CFM)
U5MH915610088 915×610×88 mm 26.2 CMM (925 CFM)
U5MHC20610088 1220×610×88 mm 35.2 CMM (1243 CFM)
U5MH570570088 570×570×88 mm 7.6 CMM (267 CFM)

10 mmH2O
（98 Pa）

*face velocity:
0.35 m/s

20 mmH2O
（200 Pa）

*According to
FU Performance

U5MHB70570088 1170×570×88 mm 15.1 CMM (534 CFM)

* Special dimension can be customized

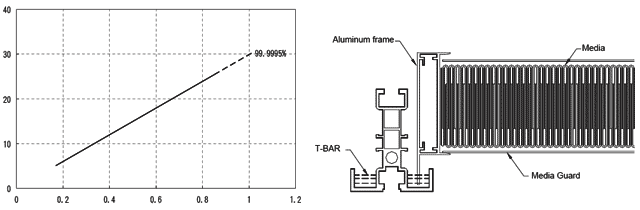

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 99.9995%
99.99995%		 at 0.1µm
0.2µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Low pressure drop mini pleat air filter

Qualified With

  • Std. EN 1822 Class U15 / U16 / U17
  • Std. IES RP-CC-001.3 TYPE F

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
U5MH305610070 305×610×70 mm 8.1 CMM (286 CFM)

25.4 mmH2O
（249 Pa）

*face velocity:
0.85 m/s

50.8 mmH2O
（500 Pa）

*recommend

U5MH610610070 610×610×70 mm 17.2 CMM (607 CFM)
U5MH760610070 760×610×70 mm 21.6 CMM (763 CFM)
U5MH915610070 915×610×70 mm 26.2 CMM (925 CFM)
U5MHC20610070 1220×610×70 mm 35.2 CMM (1243 CFM)
U5MH570570070 570×570×70 mm 7.6 CMM (267 CFM)

10 mmH2O
（98 Pa）

*face velocity:
0.35 m/s

20 mmH2O
（200 Pa）

*According to
FU Performance

U5MHB70570070 1170×570×70 mm 15.1 CMM (534 CFM)

* Special dimension can be customized

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 99.99%
99.97%		 at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Low pressure drop mini pleat air filter

Qualified With

  • Std. EN 1822 Class H11~H14
  • Std. IES RP-CC-001.3 TYPE A / B / C / D

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
H4MH305610070 305×610×70 mm 11.5 CMM (424 CFM)

25.4 mmH2O
（249 Pa）

*face velocity:
1.25 m/s

50.8 mmH2O
（500 Pa）

*recommend

H4MH610610070 610×610×70 mm 24.2 CMM (890 CFM)
H4MH760610070 760×610×70 mm 30.5 CMM (1123 CFM)
H4MH915610070 915×610×70 mm 37.0 CMM (1359 CFM)
H4MHC20610070 1220×610×70 mm 51.8 CMM (1829 CFM)
H4MH570570070 570×570×70 mm 7.6 CMM (267 CFM)

8 mmH2O
（78 Pa）

*face velocity:
0.35 m/s

16 mmH2O
（160 Pa）

*According to
FU Performance

H4MHB70570070 1170×570×70 mm 15.1 CMM (534 CFM)

* Special dimension can be customized

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 95% at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Low pressure drop mini pleat air filter

Qualified With

  • Std. EN 1822 Class H10

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
S1MH305610070 305×610×70 mm 11.5 CMM (424 CFM)

12.5 mmH2O
（122 Pa）

*face velocity:
1.25 m/s

25.0 mmH2O
（250 Pa）

*recommend

S1MH610610070 610×610×70 mm 24.2 CMM (890 CFM)
S1MH760610070 760×610×70 mm 30.5 CMM (1123 CFM)
S1MH915610070 915×610×70 mm 37.0 CMM (1359 CFM)
S1MHC20610070 1220×610×70 mm 51.8 CMM (1829 CFM)
S1MH570570070 570×570×70 mm 7.6 CMM (267 CFM)

3.5 mmH2O
（34 Pa）

*face velocity:
0.35 m/s

7.0 mmH2O
（70 Pa）

*According to
FU Performance

S1MHB70570070 1170×570×70 mm 15.1 CMM (534 CFM)

* Special dimension can be customized

Performance Chart & Filter Three-View
