Lọc Hepa - Semi Hepa (Kiểu V-Bank)
- Lọc hepa/Semi-Hepa tiêu chuẩn (Kiểu V Bank)
- Lọc hepa/Semi-Hepa lưu lượng cao (Kiểu V Bank)

V-Bank High Capacity Filter

HEPA
Semi-HEPA

D.O.P. P.S.L. Testing 99.99%
99.97%		 at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Low pressure drop V-Bank air filter
  • More efficiency and longer life
  • Lower energy consumption

Qualified With

  • Std. EN 1822 Class H11~H14
  • Std. IES RP-CC-001.3 TYPE A / B / C / D

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
Length * Width * Depth
Box
Type		 H4VH305610292 305×610×292 mm 28.3 CMM
(1000 CFM)

25.4 mmH2O
(249pa)

50.8 mmH2O
(500pa)



* Recommend

H4VH610610292 610×610×292 mm 56.6 CMM
(2000 CFM)
Single
Flange		 H4UH289593292 289×593×292 mm 28.3 CMM
(1000 CFM)		 27.7 mmH2O
(270pa)
H4UH593593292 593×593×292 mm 56.6 CMM
(2000 CFM)

* Special dimension can be customized

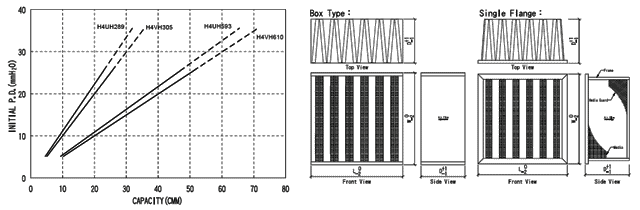

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 95% at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Low pressure drop V-Bank air filter
  • More efficiency and longer life
  • Lower energy consumption

Qualified With

  • Std. EN 1822 Class H10

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
Length * Width * Depth
Box
Type		 S1VH305610292 305×610×292 mm 28.3 CMM
(1000 CFM)

12.5 mmH2O
(122pa)

50.8 mmH2O
(500pa)



* Recommend

S1VH610610292 610×610×292 mm 56.6 CMM
(2000 CFM)
Single
Flange		 S1UH289593292 289×593×292 mm 28.3 CMM
(1000 CFM)		 13.6 mmH2O
(133pa)
S1UH593593292 593×593×292 mm 56.6 CMM
(2000 CFM)

* Special dimension can be customized

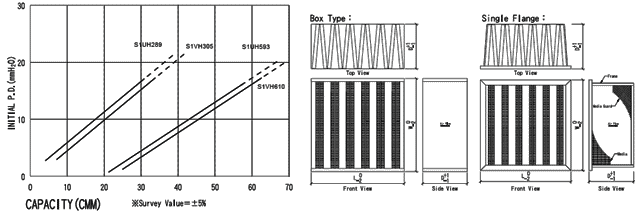

Performance Chart & Filter Three-View
