Separator High Temperature Filter

D.O.P. P.S.L. Testing 99.99%
99.97%
at 0.3µm

Qualified With

  • Aluminum Separator type filter
  • Std. EN 1822 Class H11~H14
  • Std. IES RP-CC-001.3 TYPE A / B / C / D

Apply Conditions

  • From 100°C ~ 150°C
  • From 150°C ~ 200°C
  • From 200°C ~ 300°C

Condition

  • High temperature filter can be used in baking machinery in electronics, such as painting room for automobiles.
  • High temperature frame is mostly made of SUS material, Galvanized steel and aluminum board.
  • High temperature filters are durable under high condition to provide a clearified and satisfied environment.

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
H4HA305305070 305×305×70 mm 3.5 CMM (124 CFM)

25.4 mmH2O
(249 Pa)

*face velocity:
0.48 m/s

50.8 mmH2O
(500 Pa)

*recommend



H4HA610610070 610×610×70 mm 15.5 CMM (547 CFM)
H4HA915610070 915×610×70 mm 23.7 CMM (837 CFM)
H4HA305305150 305×305×150 mm 6.1 CMM (215 CFM)

25.4 mmH2O
(249 Pa)

*face velocity:
1.34 m/s

H4HA610610150 610×610×150 mm 27.0 CMM (953 CFM)
H4HAC20610150 1220×610×150 mm 55.5 CMM (1960 CFM)
H4HA305305290 305×305×290 mm 12.7 CMM (448 CFM)

34.0 mmH2O
(333 Pa)

*face velocity:
2.8 m/s

H4HA610610290 610×610×290 mm 56.6 CMM (2000 CFM)
H4HAC20610290 1200×610×290 mm 116.2 CMM (4103 CFM)

* Special dimension can be customized

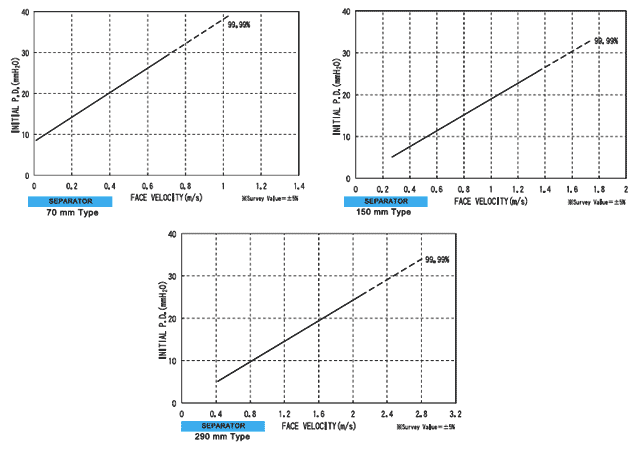

Performance Chart
