| D.O.P. |
P.S.L. |
Testing |
99.99%
99.97% |
at |
0.3µm |
Operating Conditions
- Apply Temperature: 80°C
- Apply Humidity: 100%RH (No Dew)
- Low pressure drop separatior air filter
Qualified With
- Std. EN 1822 Class H11~H14
- Std. IES RP-CC-001.3 TYPE A / B / C / D
Specifications
| Model |
Dimension |
Capacity |
Initial P.D. |
Final P.D. |
(*without inlet duct)
Length * Width * Depth |
| H4BA305305150 |
305×305×150 mm |
6.1 CMM (215 CFM) |
25.4 mmH2O
（249 Pa）
*face velocity:
1.34 m/s |
50.8 mmH2O
（500 Pa）
*recommend |
| H4BA305610150 |
305×610×150 mm |
12.8 CMM (452 CFM) |
| H4BA610610150 |
610×610×150 mm |
27.0 CMM (953 CFM) |
| H4BA760610150 |
760×610×150 mm |
34.0 CMM (1201 CFM) |
| H4BA915610150 |
915×610×150 mm |
41.3 CMM (1458 CFM) |
| H4BAC20610150 |
1220×610×150 mm |
55.5 CMM (1960 CFM) |
| H4BAF25610150 |
1525×610×150 mm |
69.7 CMM (2461 CFM) |
| H4BAI30610150 |
1830×610×150 mm |
83.9 CMM (2963 CFM) |
| H4BA305305290 |
305×305×290 mm |
12.7 CMM (448 CFM) |
34.0 mmH2O
（333 Pa）
*face velocity:
2.8 m/s |
50.8 mmH2O
（500 Pa）
*recommend |
| H4BA305610290 |
305×610×290 mm |
26.9 CMM (950 CFM) |
| H4BA610610290 |
610×610×290 mm |
56.6 CMM (2000 CFM) |
| H4BA760610290 |
760×610×290 mm |
71.2 CMM (2514 CFM) |
| H4BA915610290 |
915×610×290 mm |
86.3 CMM (3047 CFM) |
| H4BAC20610290 |
1220×610×290 mm |
116.2 CMM (4103 CFM) |
* Special dimension can be customized

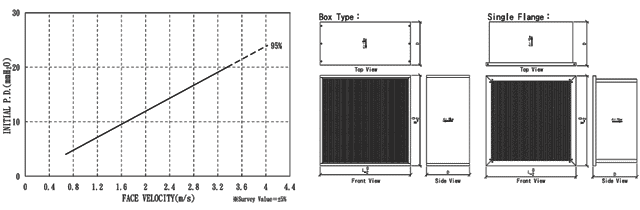

Performance Chart & Filter Three-View
