Bộ lọc Ulpa - Hepa - Semi Hepa (Kiểu Mini Pleat)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (thay thế được ruột lọc)
- Bộ lọc Ulpa/Hepa/Semi-Hepa (không thay thế được ruột lọc)
- Lọc Ulpa/Hepa/Semi-Hepa tiêu chuẩn ( Kiểu Mini Pleat)
- Lọc Ulpa/Hepa/Semi-Hepa lưu lượng cao ( Kiểu Mini Pleat)

Mini Pleat Standard Capacity Filter

ULPA
HEPA
Semi-HEPA

D.O.P. P.S.L. Testing 99.9995%
99.99995%
at 0.1µm
0.2µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Ultra thin mini pleat air filter

Qualified With

  • Std. EN 1822 Class U15 / U16 / U17
  • Std. ENS RP-CC-001.3 TYPE F

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
U5MH305610050 305×610×50 mm 4.8 CMM (169 CFM)

17 mmH2O
(167 Pa)

*face velocity:
0.5 m/s

34 mmH2O
(335 Pa)

*recommend

U5MH610610050 610×610×50 mm 10.1 CMM (357 CFM)
U5MH760610050 760×610×50 mm 12.7 CMM (448 CFM)
U5MH915610050 915×610×50 mm 15.4 CMM (544 CFM)
U5MHC20610050 1220×610×50 mm 20.7 CMM (731 CFM)
U5MH570570050 570×570×50 mm 7.6 CMM (267 CFM)

12 mmH2O
(117 Pa)

*face velocity:
0.35 m/s

24 mmH2O
(235 Pa)

*According to
FU Performance

U5MHB70570050 1170×570×50 mm 15.1 CMM (534 CFM)

* Standard depth is 50mm, and there is also available 70mm could be selected.
* Special dimension can be customized

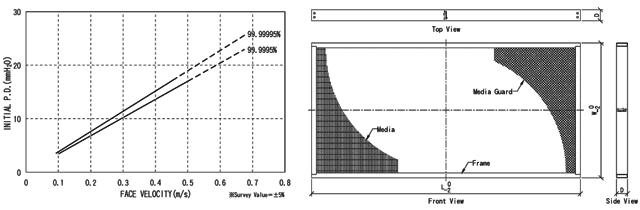

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 99.99%
99.97%
at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Ultra thin mini pleat air filter

Qualified With

  • Std. EN 1822 Class H11 / H12 / H13 / H14
  • Std. ENS RP-CC-001.3 TYPE A / B / C / D

Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
H4MH305610070 305×610×70 mm 8.1 CMM (287 CFM)

25.4 mmH2O
(249 Pa)

*face velocity:
0.85 m/s

50.8 mmH2O
(500 Pa)

*recommend

H4MH610610070 610×610×70 mm 17.2 CMM (600 CFM)
H4MH760610070 760×610×70 mm 21.6 CMM (756 CFM)
H4MH915610070 915×610×70 mm 26.2 CMM (915 CFM)
H4MHC20610070 1220×610×70 mm 35.2 CMM (1232 CFM)
H4MH570570070 570×570×70 mm 7.6 CMM (267 CFM)

10 mmH2O
(98 Pa)

*face velocity:
0.35 m/s

20 mmH2O
(200 Pa)

*According to
FU Performance

H4MHB70570070 1170×570×70 mm 15.0 CMM (534 CFM)

* Standard depth is 50mm, and there is also available 70mm could be selected.
* Special dimension can be customized

Performance Chart & Filter Three-View

D.O.P. P.S.L. Testing 95% at 0.3µm

Operating Conditions

  • Apply Temperature: 80°C
  • Apply Humidity: 100%RH (No Dew)
  • Ultra thin mini pleat air filter

Qualified With

  • Std. EN 1822 Class H10



Specifications

Model Dimension Capacity Initial P.D. Final P.D.
(*without inlet duct)
Length * Width * Depth
S1MH305610050 305×610×50 mm 8.1 CMM (287 CFM)

12.5 mmH2O
(122 Pa)

*face velocity:
0.85 m/s

25.4 mmH2O
(250 Pa)

*recommend

S1MH610610050 610×610×50 mm 17.2 CMM (600 CFM)
S1MH760610050 760×610×50 mm 21.6 CMM (756 CFM)
S1MH915610050 915×610×50 mm 26.2 CMM (915 CFM)
S1MHC20610050 1220×610×50 mm 35.2 CMM (1232 CFM)
S1MH570570050 570×570×50 mm 7.6 CMM (267 CFM)

5.5 mmH2O
(54 Pa)

*face velocity:
0.35 m/s

11 mmH2O
(108 Pa)

*According to
FU Performance

S1MHB70570050 1170×570×50 mm 15.0 CMM (534 CFM)

* Standard depth is 50mm, and there is also available 70mm could be selected.
* Special dimension can be customized

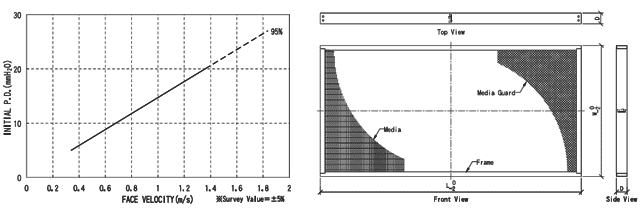

Performance Chart & Filter Three-View
